Original Article
Volume 17, Number 3, June 2026, pages 181-189
Strong Adherence to Cardiac Rehabilitation Program Improves Exercise Tolerance in Outpatients With Cardiovascular Disease
Kakeru Bandoa, Yasunori Suematsub, j, Takuro Matsudac, Yuiko Yanod, Kai Tsukaharae, Takashi Maruob, Hiroyuki Fukudac, Chie Matsushitaf, Etsumi Nakamurag, Reiko Teshimac, Hinata Odah, Kanta Fujimic, i, Shin-ichiro Miuraa, i, j
aDepartment of Cardiology, Shin-Yukuhashi Hospital, Fukuoka, Japan
bDepartment of Cardiology, Fukuoka University Hospital, Fukuoka, Japan
cDepartment of Rehabilitation, Fukuoka University Hospital, Fukuoka, Japan
dMiyase Clinic, Fukuoka, Japan
eHinoki Clinic, Fukuoka, Japan
fDepartment of Nursing, Fukuoka University Hospital, Fukuoka, Japan
gDepartment of Nutrition, Fukuoka University Hospital, Fukuoka, Japan
hFukuoka University School of Medicine, Fukuoka, Japan
iDepartment of Cardiology, School of Medicine, Fukuoka University, Fukuoka, Japan
jCorresponding Authors: Shin-ichiro Miura, Department of Cardiology, Fukuoka University School of Medicine, Fukuoka, Japan; Yasunori Suematsu, Department of Cardiology, Fukuoka University Hospital, Fukuoka, Japan
Manuscript submitted March 3, 2026, accepted April 17, 2026, published online June 5, 2026
Short title: Frequency of CR and Prognosis
doi: https://doi.org/10.14740/cr2213
| Abstract | ▴Top |
Background: Exercise-based cardiac rehabilitation (CR) programs are recommended in outpatients at least three times a week, but high-frequency visits can be difficult due to patients’ work schedules. The association between the frequency of exercise-based CR and the increase in exercise tolerance is not well known. We evaluated the effect of CR once a week or more for improving exercise tolerance.
Methods: This is a retrospective observational study. From February 2011 to January 2020, 110 outpatients who participated in CR and performed a cardiopulmonary exercise test (CPET) two times (initially and within 6 months) were registered. We divided the patients into those who participated in CR once a week or more (n = 75) and less than once a week (n = 35) and compared the changes in the results of CPET.
Results: Overall, the median patient age was 68.5 (59–74) years, 69.1% were males, and the body mass index was 23.8 (20.2–27.4) kg/m2. The average frequency of CR was 1.54 (0.93–1.89) times per week. While patients who participated in CR once a week or more showed improvements in oxygen uptake, ventilatory equivalent, ventilatory efficiency, and oxygen uptake per heart rate, those who participated in CR less than once a week showed only small improvements. The ratio of oxygen uptake to work rate in patients who participated in CR once a week or more also improved significantly.
Conclusions: Patients who participated in a CR program once a week or more showed improved exercise tolerance.
Keywords: Cardiac rehabilitation; Frequency; Exercise tolerance
| Introduction | ▴Top |
Cardiac rehabilitation (CR) refers to a long-term, multifaceted, comprehensive program designed to optimize a cardiac patient’s physical, psychological, social, and vocational status, in addition to stabilizing, slowing, or even reversing the progression of the underlying atherosclerotic or heart failure processes, thereby reducing recurrence, rehospitalization, and mortality, and enabling patients to live comfortably and actively [1].
CR has been shown to improve the prognosis for patients with cardiovascular diseases [2, 3]. Exercise tolerance is associated with the patient’s quality of life and activities of daily living, and exercise-based CR has been shown to improve exercise tolerance [4, 5]. The cardiopulmonary exercise test (CPET) is used to study exercise tolerance by using expiratory gas analysis [6, 7]. Oxygen uptake during peak and anaerobic threshold periods reflects exercise tolerance. In addition to oxygen uptake, CPET is able to measure cardiac function, ventilation volume, and ventilation efficiency [6]. However, the association between the frequency of exercise-based CR and the increase in exercise tolerance is not well known.
CR is a requisite component of care for patients with heart failure and ischemic heart disease, and is a class A recommendation in international guidelines [8–10]. The guideline of American Heart Association and European Society of Cardiology recommends 3–5 days/week exercise [11]. The guideline from European Society of Cardiology recommends 150–300 min a week of moderate intensity exercise [12]. The Japanese cardiac rehabilitation guideline also recommend that CR should be performed as often as the number of times in the exercise prescription (e.g., five times/week) in some combination of supervised outpatient CR and home-based exercise training [1]. The frequency of outpatient exercise-based CR is affected by the patient’s motivation, employment/family support, financial status, and ease of access, but it is desirable for patients to participate in outpatient exercise-based CR three times each week if possible [1]. However, frequent hospital visits are difficult for patients due to lifestyle issues. In this study, we evaluated the effect of CR once a week or more on exercise tolerance, compared to CR at less than once a week.
| Materials and Methods | ▴Top |
Study population and protocol
This single-center retrospective observational study evaluated the effect of CR once a week or more on exercise tolerance. We recommended three times CR sessions per week for all patients; however, the frequency to CR was decided by the patients. CR program includes medical assessment, prescribed exercise training, patient education, counseling, and optimal medical therapy by a multi-disciplinary team, followed by the guideline [1]. Exercise training was performed 30 min moderate intensity aerobic exercise and 20 min group bodyweight resistance exercise. Medical assessment, patient education, and dietary guidance was performed by on-site physician, nurse, or registered dietitian. Psychological counseling was performed by clinical psychologist or psychiatrist, if the patient needs it. Between February 2011 and January 2020, 511 consecutive CPET cases were registered at Fukuoka University Hospital [13, 14]. In this study, we included 110 outpatients who underwent CPET two times: initially and within 6 months. We excluded 285 cases in which CPET was performed only once, 109 cases in which the second evaluation was performed after 6 months, and seven cases that did not participate in outpatient CR. The study flowchart is shown in Figure 1. We divided the patients into those who participated in CR once a week or more (n = 75) and those who participated in CR less than once a week (n = 35) and compared the changes in the CPET results. The average duration of CR in CR less than once a week group was 109 ± 35 days and the average period of CR in CR once a week or more group was 105 ± 26 days. There was no significant difference. This study was approved by the ethics committee of Fukuoka University (U20-10-004), and was performed in accordance with the Declaration of Helsinki and the ethical standards of the Independent Review Board of Fukuoka University.

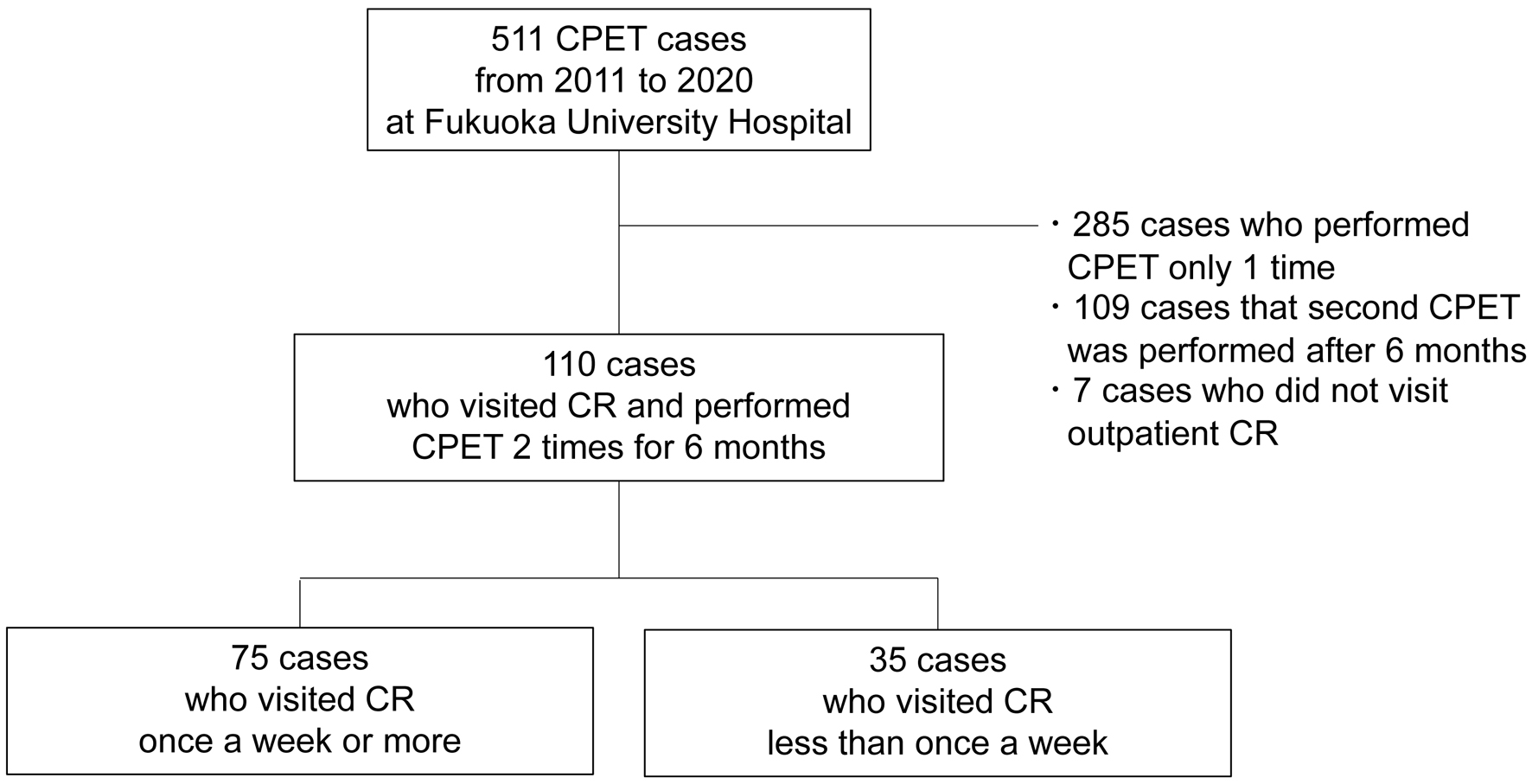

![]() Click for large image | Figure 1. Study flow diagram. CPET: cardiopulmonary exercise test; CR: cardiac rehabilitation. |
CPET
CPET was performed using a ramp protocol on a cycle ergometer (Strength Ergo 8, Fukuda Denshi, Tokyo, Japan) with a 4-min rest period and a 4-min warm-up period. In warmup period, 98 cases (89.1%), four cases (3.6%), and eight cases (7.3%) were performed by 10, 20, 0 watts, respectively. In ramp period, all patients were performed by 10 watt/min increase protocol. The gas analyzer used was a CPEX1 (Inter Riha, Tokyo, Japan). A symptom-limited exercise test was then performed. The anaerobic threshold (AT) was considered to occur at a disproportionate increase in carbon dioxide output (VCO2) against oxygen uptake (VO2) (V-slope method) [7]. We analyzed heart rate (HR), systolic blood pressure, diastolic blood pressure, VO2, VCO2, respiratory exchange ratio (RER), metabolic equivalent (MET), VO2 per body weight (VO2/wt), VO2/HR, work rate, ventilation equivalent (VE), tidal volume, respiratory rate (RR), end-tidal oxygen (ETO2), end-tidal carbon dioxide (ETCO2), VE/VO2, and VE/VCO2, at rest, warmup, 1 min before AT, AT, and peak periods. The VE/VCO2 slope, minimum VE/VCO2, the oxygen-uptake efficiency slope (OUES), and the ratio of the increase in oxygen uptake to the increase in work rate (ΔVO2/ΔWR) were also evaluated.
Patient backgrounds and the results of examinations
Age, sex, body weight, body mass index, history or presence of smoking, hypertension, diabetes mellitus, dyslipidemia, chronic kidney disease, and chronic obstructive pulmonary disease were investigated. Ischemic heart disease, chronic heart failure, and macrovascular disease were investigated as underlying cardiovascular diseases. Underlying cardiovascular disease represents the indication to CR. With regard to treatment, medications included renin-angiotensin-aldosterone system inhibitors, calcium channel blockers, diuretics, beta-blockers, mineral corticoid antagonists, and statin; percutaneous coronary intervention, coronary artery bypass grafting, cardiac valvular surgery, and implantation of an implantable cardioverter defibrillator or cardiac resynchronization therapy were investigated. The results of echocardiography and plasma total cholesterol, triglyceride, low-density lipoprotein cholesterol, high-density lipoprotein cholesterol, and brain natriuretic peptide (BNP) levels were obtained if the examinations were performed within 3 months from the day of CPET.
Statistical analysis
The SAS Software Package (Version 9.4, SAS Institute Inc., Cary, NC, USA) was used for analyses at Fukuoka University (Fukuoka, Japan). Continuous variables with a normal distribution are expressed as the mean ± standard deviation, and differences between the groups were compared using an unpaired t-test. Continuous variables with a non-normal distribution are presented as the median and interquartile range, and the differences between the groups were compared using the Mann-Whitney U test. Categorical variables are presented as numbers (%), and the differences in categorical variables between the groups were compared using a Chi-square analysis. To analyze changes in CPET results, a paired a t-test was performed for continuous variables with a normal distribution and a Wilcoxon signed-rank test was performed for continuous variables with a non-normal distribution. Delta changes of individual parameters in CPET from the initial test to the second test between two groups were analyzed by a paired design analysis of variance. All probability values were two-tailed, and P-values < 0.05 were considered statistically significant.
| Results | ▴Top |
Patient characteristics at baseline in all patients and the two groups
The patient characteristics at baseline are shown in Table 1. The frequency of CR between the two CPETs was 1.54 (0.93–1.89) times per week. Only two of the patients in this study participated in CR more than three times per week. The average duration was 106 ± 29 days. Overall, the median patient age was 68.5 (59–74) years, 69.1% were males, and the body mass index was 23.8 ± 3.6 kg/m2. There were no significant differences in comorbidities between the groups. With regard to treatment, the use of diuretics was significantly low in patients who participated in CR once a week or more. There were no significant differences in other medications or treatments. There were also no significant differences in the serum level of BNP, left ventricular ejection fraction, or the tricuspid regurgitation pressure gradient between the groups.
![]() Click to view | Table 1. Patient Characteristics in All Patients and the Groups That Visited CR Less Than Once a Week Group and Once a Week More Group |
Changes in the results of the CPET by CR in the two groups
The changes in VO2 are shown in Figure 2. In patients who participated in CR less than once a week, VO2/wt and VO2/HR were significantly increased only at the peak period. In contrast, in patients who participated in CR once a week or more, these values were significantly increased from rest to peak periods. The changes in RER were similar in both groups. The changes regarding ventilatory equivalent are shown in Figure 3. In patients who participated in CR less than once a week, only tidal volume at the peak period significantly increased. In patients who participated in CR once a week or more, VE from warm-up to peak periods, and tidal volume from AT to peak periods, and RR at peak period were significantly increased. The changes in ventilatory efficiency are shown in Figure 4. While no significant changes were seen in patients who participated in CR less than once a week, those who participated in CR once a week or more group showed a significant decrease in VE/VO2 and VE/VCO2 from rest to peak periods. The major comparison of delta changes of individual parameters in CPET from the initial test to the second test between the two groups is shown in Table 2. In CR once a week or more group, delta VO2/wt and VO2/HR in 1-min before AT and AT periods significantly increased. In CR once a week or more group, delta VE in 1-min before AT period significantly improved. The changes in parameters by an interval analysis are shown in Figure 5. Even in patients who participated in CR less than once a week, the VE/VCO2 slope significantly decreased and OUES significantly increased. In patients who participated in CR once a week or more, minimum VE/VCO2 significantly decreased and ΔVO2/ΔWR significantly increased, in addition to significant changes in the VE/VCO2 slope and OUES. We performed sub-group analyses in ischemic heart disease and chronic heart failure groups. Those results also showed similar results to all patients (Supplementary Materials 1–8, cr.elmerpub.com).

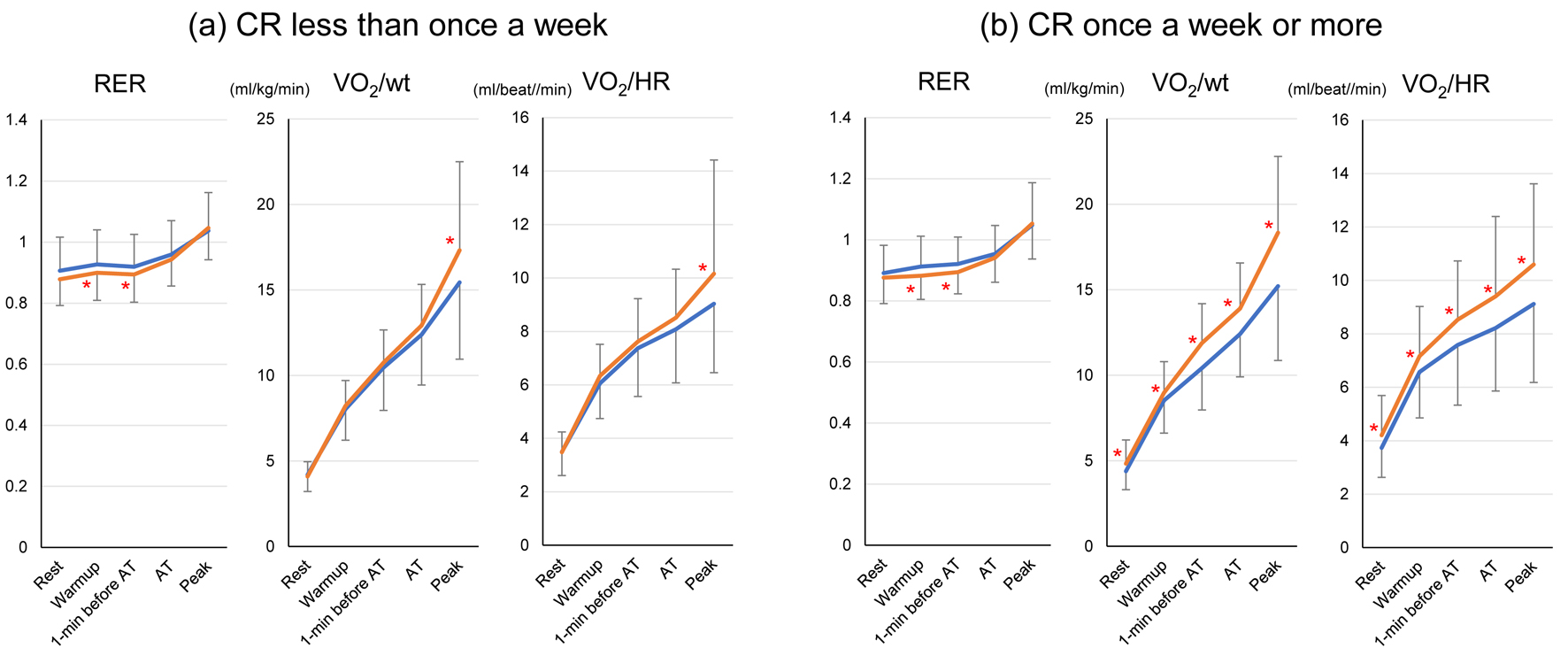

![]() Click for large image | Figure 2. The changes in RER, VO2/wt, and VO2/HR in a cardiopulmonary exercise test from the initial test to a second test in patients who participated in CR less than once a week (a) and in those who participated in CR once a week or more (b) are shown. The blue line indicates the results at the initial test and the orange line indicates the results at the second test. *Indicates a significant difference between the initial and second tests. RER: respiratory exchange ratio; VO2/wt: oxygen uptake per body weight; VO2/HR: oxygen uptake per heart rate; AT: anaerobic threshold. |

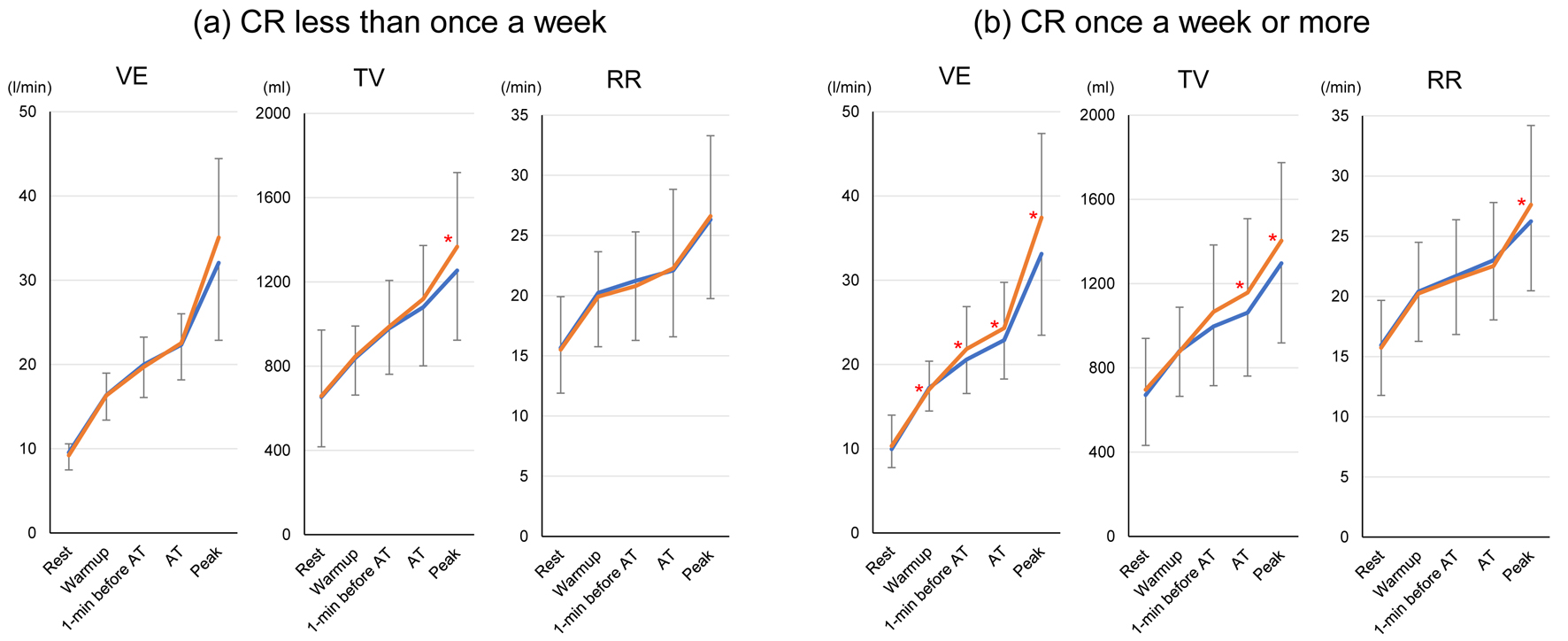

![]() Click for large image | Figure 3. The changes in VE, TV, and RR in the cardiopulmonary exercise test from the initial test to the second test in patients who participated in CR less than once a week (a) and those who participated in CR once a week or more (b) are shown. The blue line indicates the results at the initial test and the orange line indicates the results at the second test. *Indicates a significant difference between the initial and second tests. VE: ventilation equivalent; TV: tidal volume; RR: respiratory rate; AT: anaerobic threshold. |

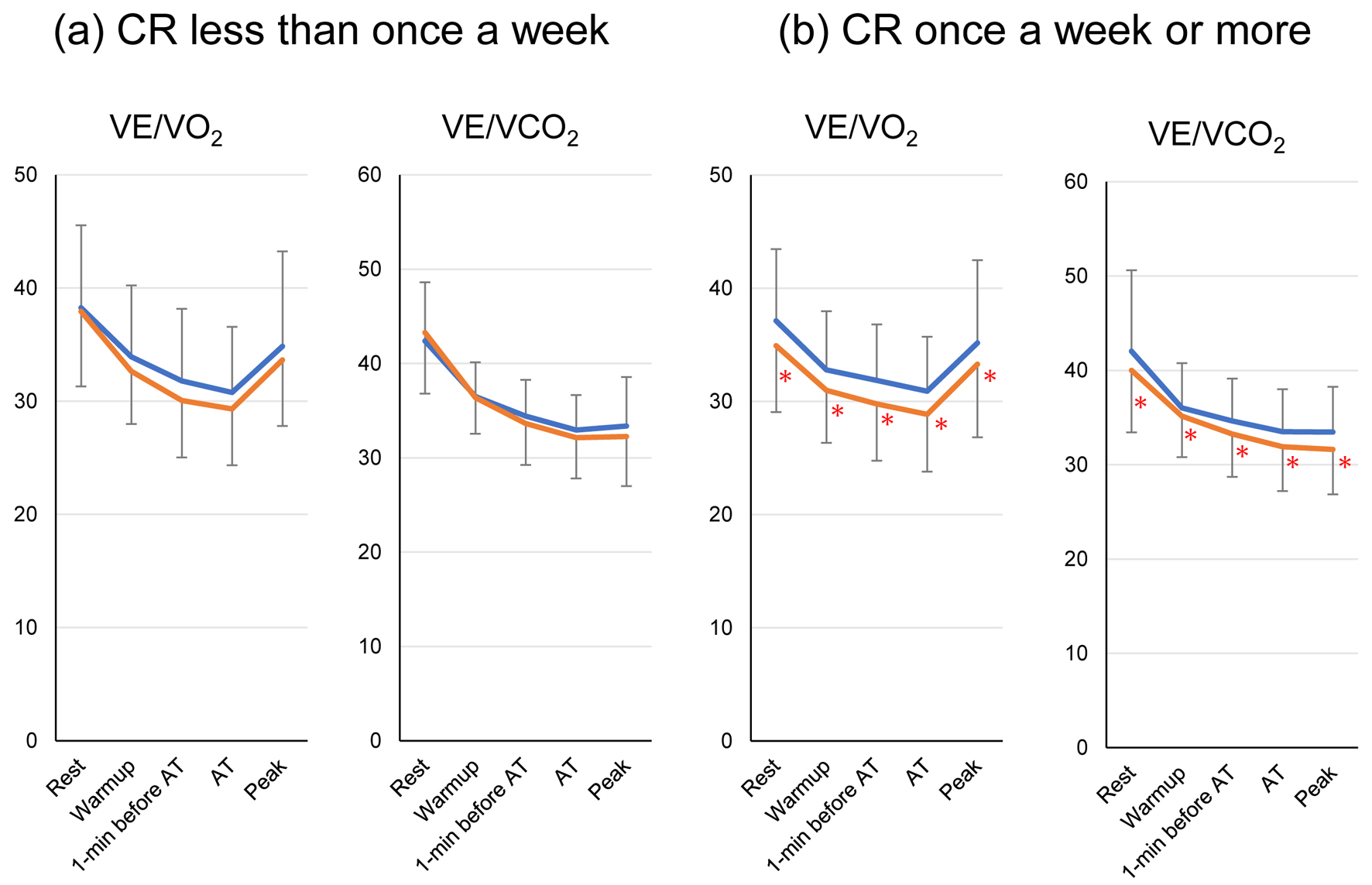

![]() Click for large image | Figure 4. The changes in VE/VO2 and VE/VCO2 in the cardiopulmonary exercise test from the initial test to the second test in patients who participated in CR less than once a week (a) and those who participated in CR once a week or more (b) are shown. The blue line indicates the results at the initial test and the orange line indicates the results at the second test. *Indicates a significant difference between the initial and second tests. VE/VO2: ventilation equivalent per oxygen uptake; VE/VCO2; ventilation equivalent per carbon dioxide output; AT: anaerobic threshold. |
![]() Click to view | Table 2. Major Differences in CPX From First to Second Test in Patients Who Participated in CR Once a Week or More Compared to Whom in CR Less Than Once a Week |

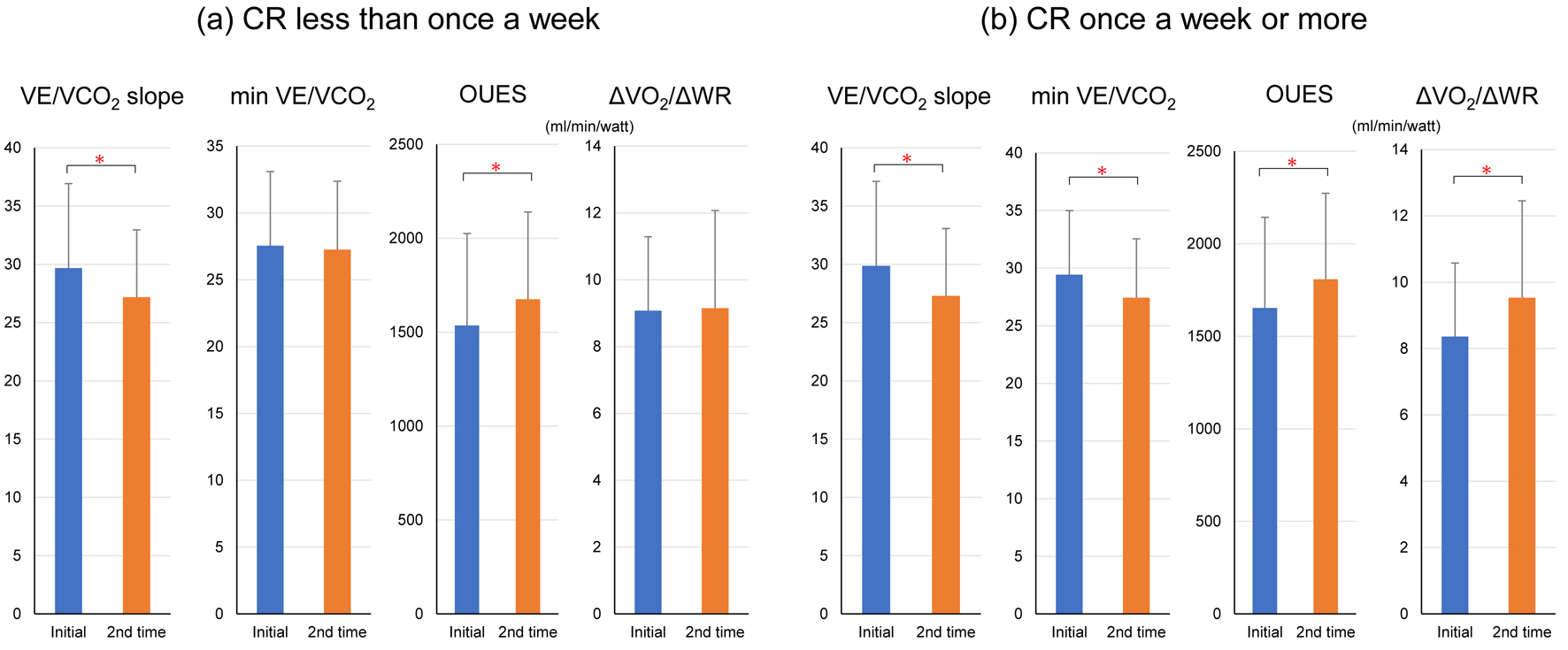

![]() Click for large image | Figure 5. The changes in VE/VCO2 slope, minimum VE/VCO2, OUES, and ΔVO2/ΔWR in the cardiopulmonary exercise test from the initial test to the second test in patients who participated in CR less than once a week (a) and those who participated in CR once a week or more (b) are shown. *Indicates a significant difference between the initial and second tests. VE/VCO2: ventilation equivalent per carbon dioxide output; OUES: oxygen-uptake efficiency slope; ΔVO2/ΔWR: the ratio of the increase in oxygen uptake to the increase in work rate; AT: anaerobic threshold. |
| Discussion | ▴Top |
Outpatient CR once a week or more increased oxygen consumption and ventilator equivalent, and improved ventilator efficiency within 6 months. CR less than once a week also improved exercise tolerance, but the effects were small. While it would be better if patients participated in CR three times per week or more, as shown in the guidelines, even those who participated in a CR program once a week or more showed improved exercise tolerance. The cardiac rehabilitation dose around the world was investigated [15]. Cardiac rehabilitation programs were not enough in many countries. North America, south America, some Europe countries, and south Africa showed enough supervised cardiac rehabilitation dose. The other European countries, Asia, including Japan, Oceania, and Australia showed moderate number of supervised cardiac rehabilitation dose, but it is not sufficient. The frequency at which patients participate in outpatient CR in Japan is low. Kanaoka et al reported that patients participated in an average total of only nine (3–17) CR sessions over 180 days: only 3.1% of outpatients participated in CR two times per week or more and 17% discontinued CR within 1 month in patients with acute coronary syndrome who underwent percutaneous coronary intervention [16]. While it is desirable for patients to participate in outpatient exercise-based CR three times per week, it is also important to understand the effect of CR once a week or more for improving exercise tolerance in a real-world situation. In this study, the patients participated in outpatient CR on average 1.54 times per week. This value is relatively high compared to other Japanese data, since this study included only outpatients who continued CR and performed CPET two times: initially and within 6 months. Patients who participated in CR once a week or more showed a great increase in VO2/wt compared to those who participated in CR less than once a week. CR once a week or more should be effective for increasing exercise tolerance. With respect to patient backgrounds, only the use of diuretics differed between the groups. Although there were no significant differences, CR less than once a week group showed high rate of heart failure, high BNP, and low left ventricular ejection fraction. The high severity of heart failure might affect the high rate of diuretics usage. However, high severity of heart failure would not affect the poor improvement of exercise tolerance in CR less than once a week group. Because, subgroup analysis in heart failure patients also showed similar results to all patients. CR less than once a week also improved VO2/wt, but only the peak VO2/wt was increased. This is a good result in CR less than once a week, but VO2/wt at 1 min before AT and AT periods are important for cardiovascular patients. Those phases directly connect activities of daily living and quality of life for cardiovascular patients, because cardiovascular patients are limited with respect to their exercise intensity until AT to prevent the excessive activation of sympathetic nerve activity and metabolic acidosis, leading to arrhythmia, angina attack, and worsening heart failure [17]. The reasons for the improvement in VO2/wt are thought to be an increase in the blood’s oxygen transport capacity due to improved cardiopulmonary function and efficiency of oxygen utilization in muscles [18]. VO2/HR and ΔVO2/ΔWR are indicators of cardiac function [19]. The influence of beta-blockers on VO2/HR should also be considered [20]. This study revealed that CR once a week or more increased ΔVO2/ΔWR and VO2/HR under a 58.3% use rate of beta-blocker. This result reflects an increase in cardiac function by CR once a week or more, because this study used a pairwise analysis and there was almost no change in medications during the study period (data not shown). Patients who participated in CR once a week or more should be more likely to develop a habit. Periodic CR should be effective for increasing cardiac function. We could not assess the changes in left ventricular ejection fraction during the study period, due to the limited number of follow-up echocardiographic examinations. The improvements in ventilatory volume and ventilatory efficiency may have also contributed to the increase in VO2/wt. In this study, CR once a week or more increased VE, tidal volume, VE/VO2, VE/VCO2, and OUES. An increase in oxygen uptake directly influences exercise tolerance [21]. Respiratory muscles such as the diaphragm and intercostal muscles would be trained by periodic aerobic exercise [22]. In addition, CR increases parasympathetic activity and suppresses excessive sympathetic activation, which balances the autonomic nervous system and makes breathing more efficient during exercise [23]. These mechanisms are thought to have contributed to improvements in ventilation volume and ventilation efficiency. Exercise-based CR has been shown to improve heart failure [24]. VE/VCO2 slope and minimum VE/VCO2 are indicators of the severity of heart failure [19]. CR less than once a week improved VE/VCO2 slope, whereas CR once a week or more improved minimum VE/VCO2, in addition to VE/VCO2 slope. Periodic CR would be effective for improving heart failure. We could not assess changes in BNP during the study period, due to the limited number of follow-up laboratory examinations. High adherence to CR might support clinical awareness and new pharmacological treatment for cardiovascular disease and underlying disease, because it has been reported that CR program is associated with a very high low-density lipoprotein target achievement [25]. CR program also has a cardioprotective effects by suppressing inflammation and rescuing specific micro-RNAs and long non-coding RNAs modulated by cardiac stress [26]. Such a biological and epigenetic mechanism might affect our results.
Limitations
This study has several limitations. This study does not have a control group. It has a possibility to contain selection bias, including the possibility that patients with higher participation frequency may have better baseline health status and functional capacity independent of CR participation. This is a retrospective observational single-center study and the sample size might affect the results. To confirm the effects of CR once a week or more, further studies will be needed. We could not investigate the changes without CPET during the study period, due to the limited number of follow-up examinations.
Conclusion
Even a CR program once a week or more was effective for improving exercise tolerance. The improvements of CPET in patients who participated CR once a week or more were acceptable.
| Supplementary Material | ▴Top |
Suppl 1. Changes in RER, VO2/wt, and VO2/HR in a cardiopulmonary exercise test from the initial test to a second test in patients with ischemic heart disease who participated in CR less than once a week and in those who participated in CR once a week or more.
Suppl 2. Changes in ventilatory volume in a cardiopulmonary exercise test from the initial test to a second test in patients with ischemic heart disease who participated in CR less than once a week group and those who participated in CR once a week or more.
Suppl 3. Changes in ventilatory efficiency in the cardiopulmonary exercise test from the initial test to the second test in patients with ischemic heart disease who participated in CR less than once a week and those who participated in CR once a week or more.
Suppl 4. Changes by interval analyses in a cardiopulmonary exercise test from the initial test to the second test in patients with ischemic heart disease who participated in CR less than once a week and those who participated in CR once a week or more.
Suppl 5. Changes in RER, VO2/wt, and VO2/HR in a cardiopulmonary exercise test from the initial test to a second test in patients with chronic heart failure who participated in CR less than once a week and in those who participated in CR once a week or more.
Suppl 6. Changes in ventilatory volume in a cardiopulmonary exercise test from the initial test to a second test in patients with chronic heart failure who participated in CR less than once a week group and those who participated in CR once a week or more.
Suppl 7. Changes in ventilatory efficiency in the cardiopulmonary exercise test from the initial test to the second test in patients with chronic heart failure who participated in CR less than once a week and those who participated in CR once a week or more.
Suppl 8. Changes by interval analyses in a cardiopulmonary exercise test from the initial test to the second test in patients with chronic heart failure who participated in CR less than once a week and those who participated in CR once a week or more.
Acknowledgments
We thank Risa Tagawa, Yuriko Tanaka, and Shizuka Kodama for registering patient data.
Financial Disclosure
The authors received no financial support for this study.
Conflict of Interest
The authors declare no conflict of interest.
Informed Consent
The ethics committee approved the use of an opt-out method for obtaining informed consent.
Author Contributions
KB and YS contributed to the conception and design of the work. TM, YY, KT, TM, HF, CM, EN, RT, and HO were responsible for the acquisition of data and cleaned the data. KB and YS performed all data analyses. KB and YS drafted the manuscript. KF and SM checked statistical analysis and revised the manuscript critically. KF and SM critically reviewed the manuscript.
Data Availability
The data supporting the findings of this study are available from the corresponding author upon reasonable request.
