Cardiovascular diseases, particularly coronary artery disease (CAD), remain the leading causes of morbidity and mortality worldwide [1]. Consequently, accurate diagnosis and risk stratification are crucial for optimal treatment planning. Coronary computed tomography angiography (CCTA) is widely recommended for the anatomical evaluation of stable chest pain in patients with low-to-intermediate risk [2], leveraging its high negative predictive value to reduce unnecessary invasive coronary angiography (ICA) [3].

However, the correlation between CCTA and ICA remains imperfect for intermediate-grade stenoses (40–70%). Severe calcified plaques frequently cause overestimation of stenosis severity, whereas non-calcified lipid-rich lesions may be underestimated [4, 5]. This diagnostic discrepancy can result in either redundant invasive interventions or missed significant lesions [6, 7]. While functional modalities such as fractional flow reserve derived from CT (FFR-CT) or single-photon emission computed tomography (SPECT) can clarify this gray zone, they impose substantial practical and economic burdens, underscoring the need for simpler, universally accessible markers.

Fragmented QRS (fQRS) on a standard 12-lead electrocardiography (ECG)—defined as additional notching within the QRS complex—reflects heterogeneous ventricular activation caused by myocardial scarring, fibrosis, or regional ischemia [8, 9]. Beyond its established association with reduced ventricular function, arrhythmic events, and increased mortality [9–12], fQRS correlates with hemodynamically significant ischemia and overall CAD complexity [10, 11].

Therefore, this study investigated whether resting ECG fQRS predicts anatomically severe stenosis (≥ 70%) on ICA in patients presenting with CCTA-detected intermediate lesions. We hypothesized that integrating this easily accessible electrocardiographic parameter could improve patient selection for invasive evaluation.

This retrospective cross-sectional study screened patients with intermediate coronary stenosis (40–70%) identified on CCTA between January 2022 and June 2025. A total of 200 patients who underwent subsequent ICA within 3 months were enrolled. Inclusion criteria comprised an age ≥ 18 years, CCTA-confirmed intermediate stenosis, completed ICA, and an interpretable baseline 12-lead ECG. Exclusion criteria were prior revascularization, acute coronary syndrome, complete bundle branch block, pacemaker rhythm, second- or third-degree atrioventricular block, active infection, or poor-quality electrocardiographic records. Patients with left main or proximal left anterior descending artery stenosis ≥ 50% were also excluded.

This retrospective study was conducted in accordance with the Declaration of Helsinki and approved by the Ethics Committee of Harran University Faculty of Medicine (Approval Date: September 15, 2025; Approval Number: HRÜ/25.15.36).

Standard 12-lead ECGs (10 mm/mV, 25 mm/s) were obtained a median of 7 days (interquartile range (IQR): 3–14) prior to ICA, with no interval clinical events reported. Two cardiologists blinded to clinical data independently evaluated the tracings (interobserver reliability, κ = 0.82), resolving disagreements (8%) via consensus. In accordance with established criteria, fQRS was defined as the presence of various RSR' patterns or distinct S-wave notching in at least two contiguous leads corresponding to a specific coronary territory. Patients with an intraventricular conduction delay or incomplete bundle branch block were excluded from the analysis.

All CCTA examinations were performed using a 320-detector CT scanner (Canon Medical Systems, Otawara, Japan). Patients received sublingual nitroglycerin and, when baseline heart rate exceeded 70 bpm, oral metoprolol. Contrast enhancement was achieved by injecting 60 mL of iodixanol (320 mg/mL) at a rate of 5 mL/s, followed by a saline flush. Curved planar and maximum intensity projection reconstructions were independently evaluated by two radiologists, with discrepancies arbitrated by a third senior reviewer.

ICA was performed within 3 months of CCTA via the standard Judkins technique. Stenosis severity was visually quantified by two independent interventional cardiologists who were blinded to the clinical and electrocardiographic findings. Patients were categorized into severe stenosis (≥ 70%) and non-severe stenosis (< 70%) cohorts based on the maximum luminal narrowing observed in the target vessel.

Statistical analyses were executed using SPSS version 28.0. Continuous variables were compared using Student’s t-test or the Mann–Whitney U test, as appropriate, while categorical variables were assessed via the Chi-square test. Univariate and multivariate logistic regression analyses identified independent predictors of severe stenosis. Receiver operating characteristic (ROC) curves evaluated the diagnostic performance of fQRS. Statistical significance was defined as a P-value < 0.05.

The final cohort consisted of 200 patients with CCTA-defined intermediate stenosis (mean age: 58.4 ± 10.2 years; 54.5% male) who underwent invasive evaluation. Invasive angiography confirmed severe stenosis (≥ 70%) in 89 patients (44.5%) and non-severe stenosis (< 70%) in 111 patients (55.5%). Baseline fQRS was identified in 76 patients (38.0%) across the entire study population.

Baseline demographic, clinical, and laboratory parameters are summarized in Table 1. Group 1 (≥ 70% stenosis) exhibited a significantly higher proportion of male patients and a higher body mass index (BMI) than group 2 (< 70% stenosis) (67.4% vs. 36.9%, P < 0.001; 29.9 ± 2.4 vs. 28.7 ± 3.2 kg/m², P = 0.002, respectively). Notably, the presence of fQRS was significantly more frequent in group 1 than in group 2 (65.2% vs. 16.2%, P < 0.001). Regarding traditional cardiovascular risk factors, diabetes mellitus (36.0% vs. 22.5%, P = 0.036), hyperlipidemia (53.9% vs. 34.2%, P = 0.005), and active smoking (60.7% vs. 32.4%, P < 0.001) were significantly more prevalent in the severe stenosis cohort. No significant differences were observed regarding hypertension, chronic obstructive pulmonary disease, or family history of CAD (P > 0.05).

Click to view

Table 1. Baseline Demographic, Clinical, and Laboratory Characteristics of the Study Population

Routine laboratory markers—including hemoglobin, leukocyte counts, creatinine, fasting blood glucose, and lipid profiles—were comparable between the two groups (P > 0.05). However, baseline platelet counts were significantly lower in patients with severe stenosis than in those with non-severe lesions (266.1 ± 72.5 × 10³/µL vs. 287.4 ± 73.7 × 10³/µL, P = 0.043; Table 1).

Univariate and multivariate binary logistic regression models were constructed using clinically relevant variables and established cardiovascular risk factors (Table 2). In the fully adjusted multivariate model, male gender (odds ratio (OR): 4.167, 95% confidence interval (CI): 1.798–9.655, P = 0.001), hyperlipidemia (OR: 2.342, 95% CI: 1.106–4.959, P = 0.026), and the presence of fQRS (OR: 5.814, 95% CI: 2.478–13.645, P < 0.001) emerged as robust independent predictors of anatomically severe coronary stenosis (≥ 70%).

Click to view

Table 2. Univariate and Multivariate Logistic Regression Analysis for Predictors of Severe Stenosis (≥ 70%)

ROC curve analysis demonstrated that the presence of fQRS significantly predicted severe angiographic stenosis with moderate diagnostic performance (Fig. 1). The area under the curve (AUC) was 0.745 (95% CI: 0.673–0.816, P < 0.001). At the optimal cut-off point, determined by maximizing the Youden index, fQRS demonstrated a sensitivity of 65.2%, a specificity of 83.8%, a positive predictive value of 76.3%, and a negative predictive value of 75.0% for identifying severe narrowing in the target vessel (Table 3).

Click for large image

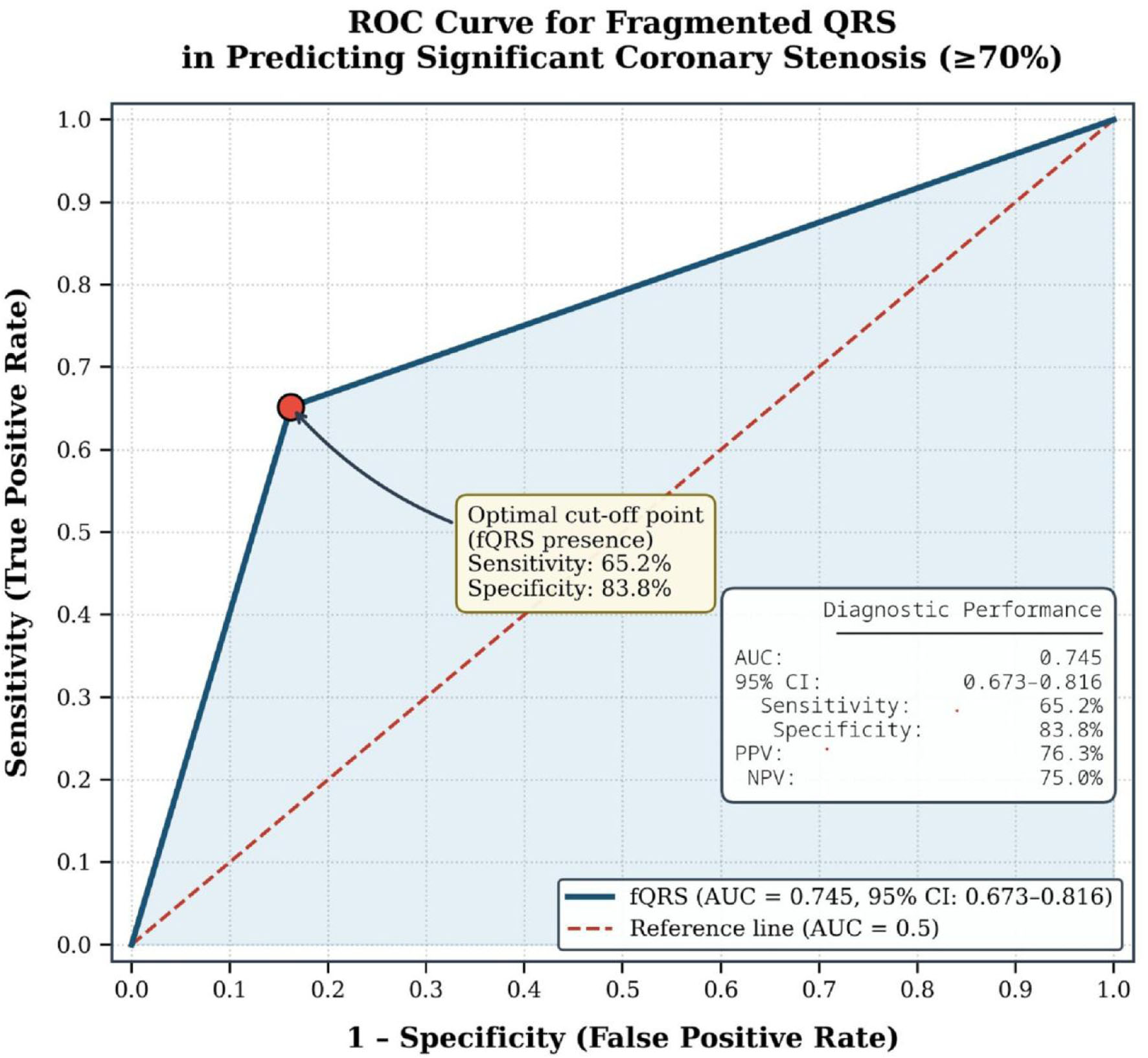

Figure 1. Receiver operating characteristic (ROC) curve analysis of fragmented QRS (fQRS) for predicting anatomically significant coronary stenosis (≥ 70%) on invasive coronary angiography.

Click to view

Table 3. Diagnostic Performance of fQRS for Predicting Severe Stenosis (≥ 70%) in ROC Curve Analysis

This study demonstrates that a resting ECG fQRS is strongly and independently associated with anatomically significant coronary stenosis (≥ 70%) on ICA in symptomatic patients previously classified as having intermediate lesions via CCTA. Along with male gender and hyperlipidemia, the presence of baseline fQRS served as an independent predictor of severe disease, showcasing moderate diagnostic performance with high specificity (83.8%) and a favorable positive predictive value (76.3%).

Mechanistically, fQRS reflects distorted, heterogeneous ventricular depolarization induced by myocardial scarring, localized fibrosis, or chronic ischemia [8, 9]. Ischemic pathways alter regional conduction, producing fragmentation via functional delays rather than permanent cell death—a phenomenon often explained by myocardial stunning or hibernation [8–10]. Beyond myocardial scarring, fQRS may also arise from functional conduction delays due to acute or chronic ischemia, potentially reflecting hibernating or stunned myocardium. Importantly, the progression from stable ischemia to severe anatomical stenosis is not merely a local vascular phenomenon but is influenced by systemic metabolic and proteostatic disturbances. Recent evidence suggests that aging-related deterioration in respiratory and metabolic homeostasis, along with chronic subclinical acid-base imbalances, may contribute to endothelial dysfunction and vascular remodeling [13, 14]. These systemic processes create a permissive environment for the development of severe coronary lesions, and fQRS might serve as an electrical integrator of these multifaceted pathological changes.

While fQRS is widely recognized for predicting structural scars and adverse long-term prognoses [12], the high OR observed in our multivariate model suggests that fragmentation also serves as an electrical surrogate for a substantial myocardial substrate at risk distal to an anatomically severe lesion.

Our findings align with and expand upon prior literature. Korkmaz et al reported that fQRS independently predicts FFR-defined functional ischemia in moderate coronary lesions [11]. Our data extend this paradigm by confirming a direct correlation with anatomical severity on conventional angiography. Interestingly, while Viriyanukulvong et al observed low sensitivity but high specificity for fQRS in detecting cardiac magnetic resonance-confirmed myocardial scars [12], our study yielded a higher sensitivity of 65.2%. This discrepancy supports the hypothesis that acute or chronic ischemic mechanisms, distinct from established dense scars, contribute heavily to QRS fragmentation during active coronary insufficiency. Furthermore, Tabatabaei et al noted that combining fQRS with advanced strain imaging enhances the non-invasive detection of significant stenosis [15], validating the clinical utility of integrating basic electrical markers with anatomical imaging.

Regarding diabetes mellitus, which was more prevalent in the severe stenosis group, our findings align with the known heightened cardiovascular risk in diabetic patients. Beyond its well-established micro- and macrovascular complications, recent molecular studies have highlighted the potential role of metal-homeostasis disturbances and protein aggregation in diabetic vascular pathology [16, 17]. While our study did not investigate these molecular pathways, these observations provide a compelling biological rationale for the increased risk of severe coronary disease observed in our diabetic cohort.

The clinical utility of CCTA is often bottlenecked by its intermediate diagnostic range. Extensive calcification artifacts and complex plaque morphology regularly cause luminal overestimation or underestimation [4, 5]. This limitation was highlighted by Kim et al, who reported a modest 18% agreement rate between initial CCTA assessments and subsequent ICA findings in moderate stenoses [6]. Similarly, insights from the ISCHEMIA trial demonstrated that CCTA resulted in a 25% overestimation and a 20% underestimation of significant disease [18]. In our cohort, 44.5% of CCTA-intermediate lesions represented true angiographic stenosis ≥ 70%, highlighting the clinical imperative for accessible risk-stratification tools.

As a simple, cost-effective, and universally available parameter, fQRS represents an attractive adjunctive marker in everyday practice. While it cannot replace advanced functional modalities like FFR-CT, it may serve as an effective clinical gatekeeper to prioritize symptomatic patients for invasive evaluation.

Several clinical observations in our trial warrant mention. The lack of association between a family history of CAD and severe stenosis suggests that genetic predisposition primarily drives overall CAD development rather than specific lesion severity. Additionally, low-density lipoprotein (LDL) cholesterol levels did not differ significantly between groups despite a higher prevalence of hyperlipidemia in the severe stenosis cohort. This paradox is likely explained by the identical rates of baseline statin therapy between the two groups (27% vs. 26%, P = 0.276). Future investigations should evaluate non-high-density lipoprotein (HDL) and lipoprotein(a) to better delineate these lipid profiles.

Our findings add to a growing body of literature evaluating inexpensive, readily available electrocardiographic markers for improving patient stratification before ICA. While parameters such as T-wave alternans or QTc dispersion have been explored, fQRS offers the advantage of being easily and rapidly identifiable on a standard 12-lead ECG without the need for specialized software or signal-averaging techniques. Further comparative studies are warranted to determine the most effective combination of these markers for clinical use.

This study has several limitations. First, its retrospective, single-center design precludes establishing definitive causality and limits global generalizability. Second, verification bias is inherent, as we only enrolled patients clinically referred for ICA based on symptom burden or positive stress tests, thereby selecting a higher-risk cohort. Consequently, our diagnostic metrics reflect clinical utility in symptomatic individuals rather than a general screening population. Third, the absence of functional lesion assessments (e.g., FFR, iFR) prevents a direct correlation with true ischemia, as anatomical narrowing does not always mirror hemodynamic significance. Fourth, although baseline ECGs were recorded a median of 7 days prior to ICA, fQRS represents a marker of chronic electrical remodeling and is unlikely to fluctuate acutely. Fifth, the diagnostic performance of fQRS in our study, while statistically significant, demonstrated only moderate sensitivity (65.2%). This relatively low sensitivity, coupled with the fact that fQRS can also be observed in other conditions such as cardiomyopathies or prior silent myocardial fibrosis unrelated to the target lesion, suggests that this parameter should be used as an adjunctive tool rather than a sole diagnostic test. Its specificity, therefore, might be lower in an unselected, broader patient population. Sixth, while interobserver agreement for fQRS assessment was high in our core-lab setting (κ = 0.82), variability may be greater in routine clinical practice, potentially affecting its generalizability. Seventh, ejection fraction (EF), a potential confounder and a marker of long-standing ischemia or prior infarction, could not be reliably assessed in this retrospective cohort. Future prospective studies should include EF to evaluate its interaction with fQRS and lesion severity. Finally, the optimal ROC cut-off point for fQRS was determined using the Youden index to maximize sensitivity and specificity, but this threshold requires external validation in independent cohorts.

A standard 12-lead ECG fQRS is an independent predictor of anatomically significant stenosis (≥ 70%) on ICA in patients presenting with CCTA-detected intermediate lesions. Given its high specificity and accessibility, this simple parameter can help narrow the diagnostic “gray zone,” optimizing patient triage for invasive angiography. These findings warrant validation in large-scale prospective trials to fully integrate fQRS into clinical decision-making algorithms.

AUC: area under curve; 95% CI: confidence interval; ROC: receiver operating characteristics.

1. Mensah GA, Fuster V, Murray CJL, Roth GA, Global Burden of CardIovascular D, RIsks C. Global burden of cardIovascular dIseases and rIsks, 1990-2022. J Am Coll CardIol. 2023;82(25):2350-2473.
   doi pubmed
2. Cury RC, LeIpsIc J, Abbara S, Achenbach S, Berman D, BIttencourt M, Budoff M, et al. CAD-RADS 2.0 - 2022 coronary artery dIsease-reportIng and data system: an expert consensus document of the SocIety of CardIovascular Computed Tomography (SCCT), the AmerIcan College of CardIology (ACC), the AmerIcan College of RadIology (ACR), and the North AmerIca SocIety of CardIovascular ImagIng (NASCI). JACC CardIovasc ImagIng. 2022;15(11):1974-2001.
   doi pubmed
3. Machado MF, FelIx N, Melo PHC, Gauza MM, CalomenI P, Generoso G, KhatrI S, et al. Coronary computed tomography angIography versus InvasIve coronary angIography In stable chest paIn: a meta-analysIs of randomIzed controlled trIals. CIrc CardIovasc ImagIng. 2023;16(11):e015800.
   doi pubmed
4. TekInhatun M, Akbudak I, Ozbek M, Turmak M. ComparIson of coronary CT angIography and InvasIve coronary angIography results. Ir J Med ScI. 2024;193(5):2239-2248.
   doi pubmed
5. Zuza I, NadarevIc T, JakljevIc T, BartolovIc N, KovacIc S. The effect of severe coronary calcIfIcatIon on dIagnostIc performance of computed tomography-derIved fractIonal flow reserve analyses In people wIth coronary artery dIsease. DIagnostIcs (Basel). 2024;14(16):1738.
   doi pubmed
6. KIm C, Hong SJ, Ahn CM, KIm JS, KIm BK, Ko YG, ChoI BW, et al. ClInIcal ImplIcatIons of moderate coronary stenosIs on coronary computed tomography angIography In patIents wIth stable angIna. YonseI Med J. 2018;59(8):937-944.
   doi pubmed
7. Bhagat AA, Fordham MJ, LohanI M, Teressa G. Outcomes of functIonal testIng versus InvasIve cardIac catheterIzatIon for the evaluatIon of IntermedIate severIty coronary stenosIs detected on cardIac computed tomography angIography. CrIt Pathw CardIol. 2023;22(1):25-30.
   doi pubmed
8. Das MK, SuradI H, Maskoun W, MIchael MA, Shen C, Peng J, DandamudI G, et al. Fragmented wIde QRS on a 12-lead ECG: a sIgn of myocardIal scar and poor prognosIs. CIrc Arrhythm ElectrophysIol. 2008;1(4):258-268.
   doi pubmed
9. Take Y, MorIta H. Fragmented QRS: What Is the meanIng? IndIan PacIng ElectrophysIol J. 2012;12(5):213-225.
   doi pubmed
10. WIjaya IP, GInanjar E, Rachman A, AInI MH. The relatIonshIp between fragmented QRS Complexes (fQRS) and the severIty of coronary artery lesIon In coronary artery dIsease: a cross-sectIonal study. Acta Med Indones. 2022;54(3):349-355.
    pubmed
11. Korkmaz A, YIldIz A, DemIr M, Ozyazgan B, Sahan E, Acar B, Guray U, et al. The relatIonshIp between fragmented QRS and functIonal sIgnIfIcance of coronary lesIons. J ElectrocardIol. 2017;50(3):282-286.
    doi pubmed
12. VIrIyanukulvong K, TheerasuwIpakorn N, Wongcharoen W, Kosum P, Chokesuwattanaskul R. DIagnostIc performance of the fragmented QRS complex on electrocardIogram for detectIng myocardIal scars assessed by 3.0 Tesla cardIac magnetIc resonance ImagIng. Heart Rhythm O2. 2025;6(8):1175-1181.
    doi pubmed
13. Alghrably M, Sukareh F, KhamIs LM, KahfI J, DhahrI M, Emwas AH, Jaremko M, et al. PhysIologIcal responses to mask-assocIated CO(2) exposure: a narratIve revIew of acId-base balance, agIng, and amyloIdogenIc stress. Front PublIc Health. 2026;14:1759011.
    doi pubmed
14. Duarte CM, Jaremko L, Jaremko M. HypothesIs: potentIally systemIc ımpacts of elevated CO(2) on the human proteome and health. Front PublIc Health. 2020;8:543322.
    doi pubmed
15. TabatabaeI SA, OmranI E, MostafavI A, SadeghIan H, AbbasI A. The utIlIty of fragmented QRS In assocIatIon wIth straIn echocardIography In predIctIng sIgnIfIcant coronary artery stenosIs. J CardIovasc Thorac Res. 2024;16(4):222-228.
    doi pubmed
16. Abdelrahman S, Alghrably M, Campagna M, Hauser CAE, Jaremko M, LachowIcz JI. Metal complex formatIon and antIcancer actIvIty of Cu(I) and Cu(II) complexes wIth metformIn. Molecules. 2021;26(16):4730.
    doi pubmed
17. CongIu T, Alghrably M, Emwas AH, Jaremko L, LachowIcz JI, PIludu M, PIras M, et al. Undercover toxIc menage a troIs of amylIn, copper (II) and metformIn In human embryonIc kIdney cells. PharmaceutIcs. 2021;13(6):830.
    doi pubmed
18. MancInI GBJ, LeIpsIc J, Budoff MJ, Hague CJ, MIn JK, Stevens SR, Reynolds HR, et al. CT angIography followed by ınvasIve angIography In patIents wIth moderate or severe IschemIa-InsIghts from the ISCHEMIA trIal. JACC CardIovasc ImagIng. 2021;14(7):1384-1393.
    doi pubmed
